PMC - Stroke Belt Sander and Polisher

PMC Stroke Belt Sanders and Polishers are low cost, manually operated, sanding and polishing machines.
1 year warranty
  • Models PMC and PMC-2 Stroke Belt Sanders and Polishers has feature dust hoods on both sides, a table with steel rollers and virtually wear-free balanced and quiet running aluminium pulleys. All models are equipped with a magnetic starter (overload protection) and belt guards. Standard vertical adjustment is 28". Table weight capacity is 200 lb.
  • Five models are available: PMC-168 / PMC-216 / PMC-264 / PMC-312 / PMC-360.
  • These models are also available in Dual Belt, which allows the user to operate with two different grits at one time.
  • Contact wheel assembly with carriage;
  • Pneumatic tensioner:
    • recommended for applications with frequent changes of belt.
  • Sanding belt variable speed of 3300 to 6300 fpm for motor for 5 and 7.5 HP;
  • Enlarge the table from 30'' to 48'';
  • Vacuum cup to hold parts, including:
    • Six vacuum cups fixed to the table;
    • One vacuum generator with manifold;
    • One selector to start/stop vacuum.
PMC and PMC-2 Sroke Belt Sander and Polisher
Contact Wheel and Friction Pad
Table Height Adjustment Crank
PMC-2: Dual Belts

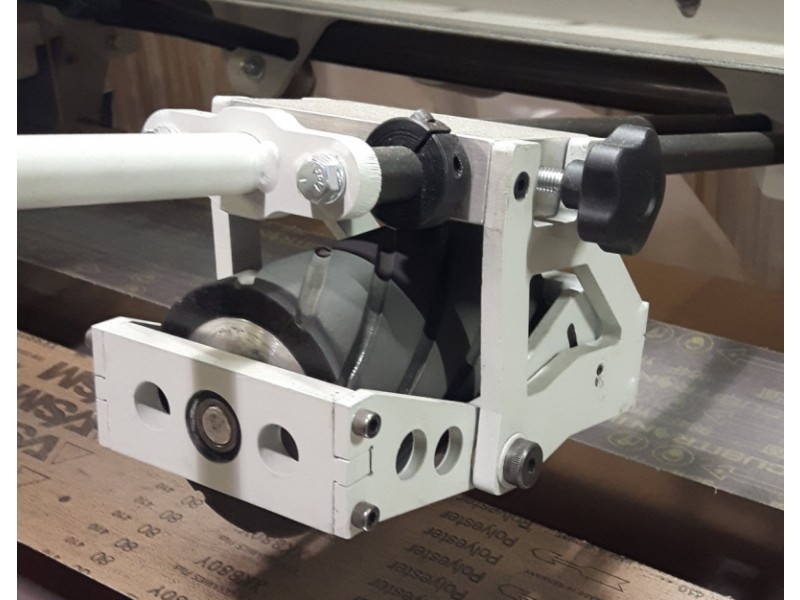

Vulcanized Rubber Grooved Contact Wheel Assembly
Six (6) Vacuum Cups with individual activation switch, to hold parts

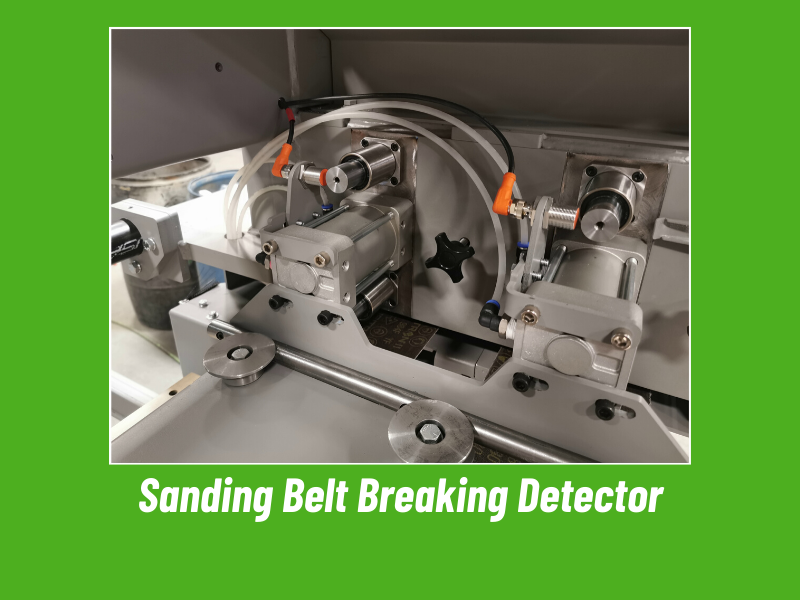

Pneumatic Belt Tensioner
PMC and PMC-2 Sroke Belt Sander and Polisher
